EGTAbstractNode< T > Class Template Reference

Base class template of EGTSubGraph and EGTNode. More...

#include <EGTAbstractNode.h>

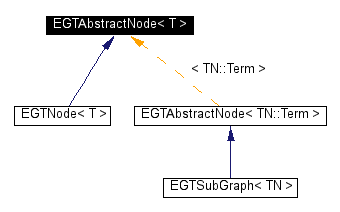

Inheritance diagram for EGTAbstractNode< T >:

[legend]Collaboration diagram for EGTAbstractNode< T >:

[legend]List of all members.

Public Types
typedef T	Term
typedef EGTVector< T * >	Terms
typedef EGTAbstractNode< T >	Self
Public Methods
	EGTAbstractNode (UInt uNumIn, UInt uNumOut)
	Constructor.
	EGTAbstractNode (const Self &rhs)
	Constructor.
virtual	~EGTAbstractNode ()
	Destructor.
UInt	GetNumInTerms () const
	Returns the number of input Terminals.
UInt	GetNumOutTerms () const
	Returns the number of output Terminals.
Term *	GetInTerm (UInt uTermNum)
	Returns the input Terminal with the specified ID number.
Term *	GetOutTerm (UInt uTermNum)
	Returns the output Terminal with the specified ID number.
const Term *	GetInTerm (UInt uTermNum) const
	Returns the input Terminal with the specified ID number (const version).
const Term *	GetOutTerm (UInt uTermNum) const
	Returns the output Terminal with the specified ID number (const version).
void	ConnectSrc (UInt uTermNum, Term *src)
	Interconnects the input Terminal with the source (output) Terminal.
void	ConnectDest (UInt uTermNum, Term *dest)
	Interconnects the output Terminal with the destination (input) Terminal.
virtual void	Display (std::ostream &out) const
	Outputs the data of input/output Terminals.
Protected Methods
void	CheckNumInTerms (UInt uNum, char *filename, UInt uLine) const
	Checks whether the input Terminal with the specified ID number exists. If not exists, throws an exception.
void	CheckNumOutTerms (UInt uNum, char *filename, UInt uLine) const
	Checks whether the output Terminal with the specified ID number exists. If not exists, throws an exception.
Protected Attributes
Terms	m_tInTerms
	Array of input Terminals.
Terms	m_tOutTerms
	Array of output Terminals.

---

Detailed Description

template<class T>
class EGTAbstractNode< T >

Base class template of EGTSubGraph and EGTNode.

It is assumed that <T> is a subclass of EGTTerminal.

---

Member Typedef Documentation

template<class T> typedef EGTAbstractNode<T> EGTAbstractNode< T >::Self

Reimplemented in EGTNode< T >, and EGTSubGraph< TN >.

template<class T> typedef T EGTAbstractNode< T >::Term

Reimplemented in EGTNode< T >, and EGTSubGraph< TN >.

template<class T> typedef EGTVector<T*> EGTAbstractNode< T >::Terms

Reimplemented in EGTNode< T >, and EGTSubGraph< TN >.

---

Constructor & Destructor Documentation

template<class T> EGTAbstractNode< T >::EGTAbstractNode (  UInt    uNumIn, UInt    uNumOut )  [inline]

Constructor.

template<class T> EGTAbstractNode< T >::EGTAbstractNode (  const Self &    rhs )  [inline]

Constructor.

template<class T> virtual EGTAbstractNode< T >::~EGTAbstractNode (    )  [inline, virtual]

Destructor.

---

Member Function Documentation

template<class T> void EGTAbstractNode< T >::CheckNumInTerms (  UInt    uNum, char *    filename, UInt    uLine )  const [protected]

Checks whether the input Terminal with the specified ID number exists. If not exists, throws an exception. Parameters: uNum  [in] ID number of the Terminal to be checked filename  [in] Filename uLine  [in] Line number

template<class T> void EGTAbstractNode< T >::CheckNumOutTerms (  UInt    uNum, char *    filename, UInt    uLine )  const [protected]

Checks whether the output Terminal with the specified ID number exists. If not exists, throws an exception. Parameters: uNum  [in] ID number of the Terminal to be checked filename  [in] Filename uLine  [in] Line number

template<class T> void EGTAbstractNode< T >::ConnectDest (  UInt    uTermNum, Term *    dest )

Interconnects the output Terminal with the destination (input) Terminal. Parameters: uTermNum  [in] ID number of the output Terminal. dest  [i/o] Pointer to the destination (input) Terminal.

template<class T> void EGTAbstractNode< T >::ConnectSrc (  UInt    uTermNum, Term *    src )

Interconnects the input Terminal with the source (output) Terminal. Parameters: uTermNum  [in] ID number of the input Terminal. src  [i/o] Pointer to the source (output) Terminal.

template<class T> void EGTAbstractNode< T >::Display (  std::ostream &    out )  const [virtual]

Outputs the data of input/output Terminals. Parameters: out  [out] Output stream Reimplemented in EGTNode< T >, and EGTSubGraph< TN >.

template<class T> const Term* EGTAbstractNode< T >::GetInTerm (  UInt    uTermNum )  const [inline]

Returns the input Terminal with the specified ID number (const version).

template<class T> Term* EGTAbstractNode< T >::GetInTerm (  UInt    uTermNum )  [inline]

Returns the input Terminal with the specified ID number.

template<class T> UInt EGTAbstractNode< T >::GetNumInTerms (    )  const [inline]

Returns the number of input Terminals.

template<class T> UInt EGTAbstractNode< T >::GetNumOutTerms (    )  const [inline]

Returns the number of output Terminals.

template<class T> const Term* EGTAbstractNode< T >::GetOutTerm (  UInt    uTermNum )  const [inline]

Returns the output Terminal with the specified ID number (const version).

template<class T> Term* EGTAbstractNode< T >::GetOutTerm (  UInt    uTermNum )  [inline]

Returns the output Terminal with the specified ID number.

---

Member Data Documentation

template<class T> Terms EGTAbstractNode< T >::m_tInTerms [protected]

Array of input Terminals.

template<class T> Terms EGTAbstractNode< T >::m_tOutTerms [protected]

Array of output Terminals.

---

The documentation for this class was generated from the following file:

• EGTAbstractNode.h
